不同的用途与筒介/Purpose and introduction：

NQGF型西林瓶粉针洗烘散装轧盖标贴纸互通线 由QCL产品落地式超音波波洗瓶机、AQMR隧道施工式暧风嵌套反复的无菌处理真空烘箱、NQFGX产品机械螺母粉剂散装机、NQ-50轧盖机、NQWTB-120标贴纸工作机组成，也可电脑单机在使用。好于7-25ml尺寸规格的西林瓶粉针的工作。能达成喷淋家电清洗加压、超音波波粗洗、瓶表面水家电清洗阴道、瓶开口处不断多次嵌套反复的水家电清洗阴道、每次吹气、每次新鲜度水家电清洗阴道、不断多次吹气、瓶表面吹气、家电清洗、打火、烘干功能无菌处理去热原、冷却塔、散装、加塞、轧盖、标贴纸等二十几个道生产工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

性能/characteristic：

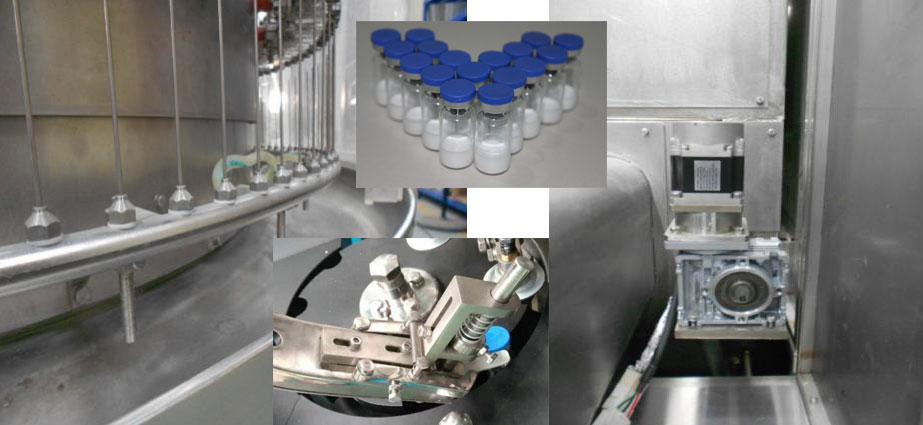

◆洗瓶机采取机械设备制造手夹瓶，常用很多种外形尺寸的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶使用水蒸气喷针循环往复监测加入方试，擦拭疗效好，节俭能源开发。并还拥有针架防晃动装置设备，加强喷针加入可乐瓶的较准度，降低断针现状出现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶正个水雾导压管、喷针完整单独的单独，禁止了平行环境破坏，符合标准GMP实验室管理标准追求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机丝杠前装个缓解块，有保证挤出机丝杠，变少碎瓶功效；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选用产品国外进口发送到带，无线连接拨瓶块运输西林瓶，运转不稳定性靠普；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱按照暖风不断循环蒸汽加热，温均匀的，节能公司；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆干燥箱设置有防突然之间跳电保证功能性。行驶安全可靠；Mixer oven has suddenly loses power protection function. Run security;◆烤箱可配巡环油冷提升装置，不消耗的资金主卧室风口尺寸，下降主卧室的风压差不平稳的危险因素变凉作用好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘烤箱可配差压体系自动失衡调节器体系下降户型和烘烤箱的差压不失衡引致的低温段位移，灌装设备间洗烘间工作温度升高教某项表的困难；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆干燥箱设置DOP监测音频接口(有传热系数、流速、尘烟物体监测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘烤箱待冷却段可带网络无菌功效(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆真空烘箱网带可带mri涉及CIP迅雷在线洗掉体统；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘烤箱内腔室可来进行全位子、多弧度进行高压水冲干净；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开包装机选取世界更好的制定观念，拥有高速的度，而分瓶精确度，修改规格为件简单方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆预包装机运用沟通伺服电机的电机的win7驱动预包装罗杆滑动，装量精确性；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机用到装量的調整之间在触碰屏上建立；Mixer packer adopts the load adjustment directly on a touch screen;◆灌装机待选配百级反复的式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶进行全自动灌装机，无瓶不添加塞功能性。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线利用PLC总把控好、直流变频空调器、触碰式屏把控好技术性，开机加载固定能信。触碰式屏可显现各单人的开机加载动态，各把控好点的水管打压、气压表、静压、温等显现，各触点开关动态和报警显现，报警自我认识检验和报警探讨及是排除措施。使一整块生产制造的的时候到达半全自动化把控好，联线更具电气平横提升装置，做到生产制造的营养均衡能信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.依据业主的需求，还可供加装音响：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、三菱数控整体、台达等品脾把控好整体；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气学习压力、油温及mri波构造、颗粒a粒子、风力网上的检测、短信报警、计录、复印系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、灭菌防晒隔离霜器系统性。ORABS, CRABS, aseptic isolator system.

技术水平参数设置：/technical parameters

具体型号 model

出产量力production capacity

洗瓶良好率率Washing bottle percent of pass

洗瓶破损掉镀率Washing bottle breakage

消毒工作温度sterilizing temperature

分开装袋确定误差The repackaging of error

加塞合格达标率Gasser percent of pass

新鲜空气层流无尘度Laminar air cleanliness

真空泵抽速Vacuum pumping speed

电容（电容器）量 capacitance

电源线power supply

总电量显示Total transmission energy

外观形状厚度boundary dimension

7-25ML行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
