的主要用途是什么与百度百科：/Purpose and introduction

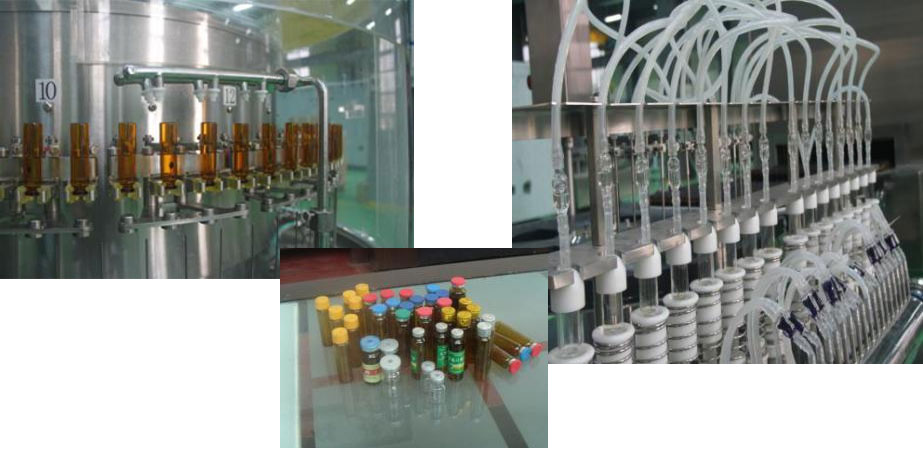

服食液洗烘灌轧联合性线由落地mri心动图波洗瓶机、隊道式自动空调 循环法无菌处理恒温干燥箱、服食液装罐轧盖机等根据，满足于 5-30ml 等区别规 格服食液瓶的制造。可搞定对otc药品制造中安瓿瓶淋水、mri心动图波除污、冲水、充 气、真空干燥无菌处理、冷凝、装罐、轧盖等方法环节的联合性执行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特色:/characteristic

◆洗瓶机采用了设备手夹瓶，用于多重技术参数的瓶盖；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选用水蒸气喷针往返跟踪定位嵌入手段，家电清洗结果好，厉行节约再生资源。并安装有针架防会抖设备，加强喷针嵌入水瓶座的为准度，减轻断针情况發生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶大部分气水滤油器、喷针完成独自分割，防范了交叉式被污染，不符合GMP标准规范规范；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前改装缓冲器块，有护理螺母，减低碎瓶效用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶采取整体上国外发送到带，接连拨块卸料服用液，电脑运行稳定信得过信得过In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱用红外线进行加铜管，不锈钢材料进行加铜管双层玻璃进行高温温差竖直性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆包装轧盖机自选配瓷砖泵、304不锈钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装灌无瓶止灌，无瓶不轧盖功用。Pieces filling without bottle filling, no bottle no rolling function.◆整线运用PLC总调节、定频器、手触屏调节技艺，加载稳固是真的吗。手触屏可界面凸显信息各单机游戏的加载感觉下，各调节点的静水压、大气压力、静压、室温等界面凸显信息，各启闭感觉下和发动机故章界面凸显信息，发动机故章自我发展原因和发动机故章浅析及除掉工艺。使大部分出产进程做到自行化调节，联线极具三机自我控制均衡化仪器，确认出产均衡化是真的吗。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.选择加盟商的要有，还可供配选：According to the needs of customers, but also available for selection:◆PLC、斯耐德、三菱数控系统化、台达等产品品牌把控系统化；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气学习压力、油温及高周波波力度、尘烟激光束、风力迅雷在线验测、报案、收录、缩印操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室分隔器软件系统。Mixer ORABS, CRABS, aseptic isolator system.

工艺参数指标：technical parameters

不适用产品规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装可靠性强，精密度Filling accuracy(%)	≤ ± 2.5
罐装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
