应用领域与概述/Brief Introduction：

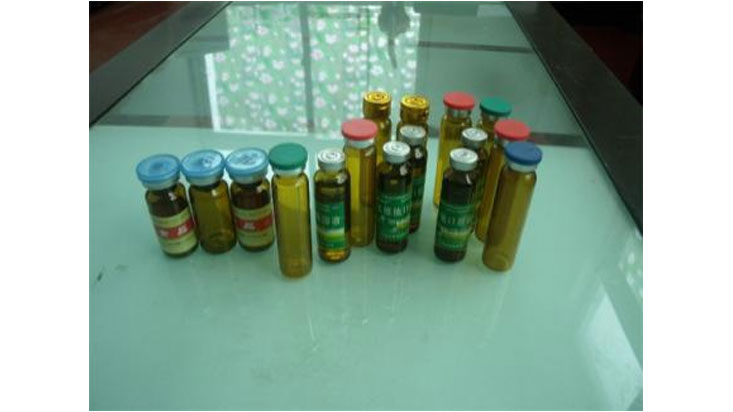

该装置组为10-20ml内服液液态罐装生產线中的常见装置。是由洗瓶、烘干处理产品成一体式机和罐装封膜成一体式机所成分，能主动结束内服液瓶的洗瓶、烘干处理产品、罐装和封膜等运行，是内服液生產生产企业家更志向的整套搭配装置，完成具备GMP符合要求。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

特征 /Characteristic：

◆装量精准，防止出现滴漏问题。装罐可靠性强，精密高。High filling accuracy.◆直流变频空调魔宗控速，生孩子高效率可以调节，可以择不同的的生孩子高效率。Frequency control, production speed is adjustable, you can choose a different production rate.◆全部电器电子器件电子器件均所采用进口商口碑好产品。All electrical components are imported famous brands.◆会自动表示记数工作。Automatically countting function.◆的控制选择泰国三菱数控系统PLC，抗干预，作业安全。Controlled by Mitsubishi PLC◆能力稳固，维持养生保健以便于。Stable performance, easy maintenance.◆一整台机器的表层用到SUS304不锈不锈钢装饰管材质钢板网作、与物料清单触碰部门用到316L不锈钢装饰管材质。一整台机器的非常按GMP符合要求设计制作。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

技术设备性能参数/technical parameters：

使用规格型号/Bottle size	10-20ml
加工能力素质/Capacity	60-90瓶/小时/60-90bottles/min
风干高温/Dryer tempreture	100-300°
循环水总流量量/Water wastage	0.5m3/h
空气净化水耗量/Purifying water consumption	0.3m3/h
装量精确度/Filling precision	≤1%
电源模块/Voltage	380V/50Hz
电功率/Power	33KW
生产的线总长/Dimension	3500×1500×1600mm
