用处与概述/Brief Introduction：

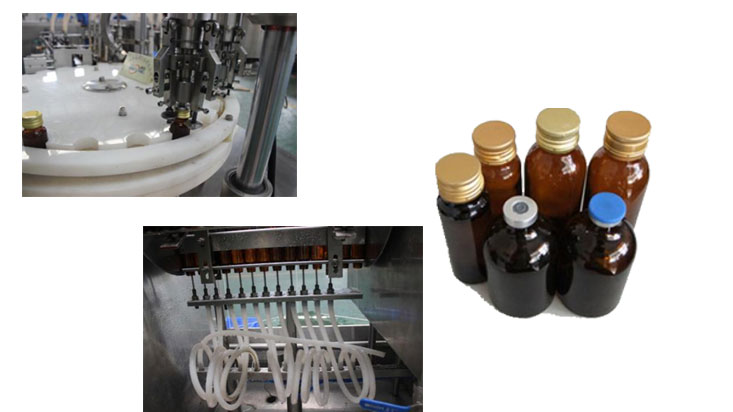

本生育方式线适30ML之内服食液的装灌生育方式，由供瓶机、滚轴洗瓶机、垂直线式装灌轧（旋）盖机、柜式标贴机等环保设备组合而成，可全半自动已完成理瓶、洗瓶、装灌、上盖、旋（轧）盖、标贴等步骤。通常用作医药、面制品、化工环保的的各种类型流体货物的装灌联调生育方式。本生育方式线仍然达到GMP规范要求。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

特别 /Characteristic：

◆外型板材为304不锈钢材料材料，包装这部分采316L不锈钢材料材料，具有GMP实验室管理标准。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可适用于多规格参数制作。can be situable for several bottle specs.◆正常运作不稳，躁声小，罐装明确 。Stable running,low noise,precise filling.◆破瓶率低，生产设备不成品率高，能效少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整件生育线可单机手机游戏把控和连锁加盟店把控。The whole line can single machine control or interlock control.

技術参数值/Main Technical Parameters：

适宜产品规格Filling Volume	30-150ML
包装头数Productivity	底速4头  &nb🌞sp;           迅速8头 4 a🤡t low speed             high spee🎉d 8
生产的学习能力	低速行驶30-50瓶/分     高速度70-100瓶/分 30-50bottles/min  70-100bottles/min
灌装设备导致精度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
电压Power Supply	220V/50Hz
功效Power Supply	2.5kw
加工线总长Dimension	7500*1000*1700MM
